Nanoparticle proteomics
Developed by Seer, Proteograph is an advanced pre-processing solution coupled with high-precision mass spectrometry for unbiased and in-depth protein detection in bodily fluid samples such as serum and plasma.

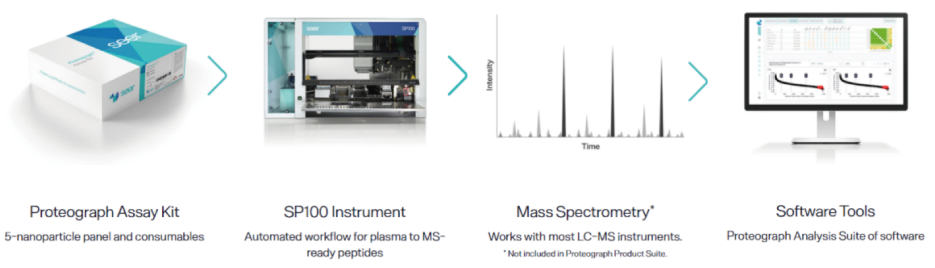

The Proteograph-DIA proteomics solution includes:
- Proteograph assay kit
- SP100 automated workstation
- Proteograph analysis suite (PAS) data analysis package
This system eliminates the need for additional removal of high-abundance proteins and fully automates the process from raw sample to peptide collection.

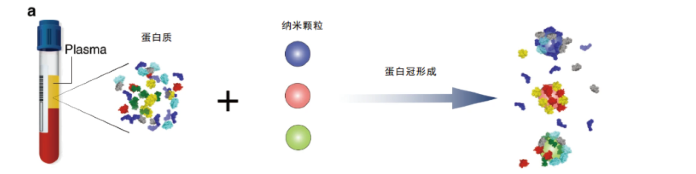

The Proteograph assay kit comprises 5 patented Nanoparticle (NPs) magnetic beads and a complete set of reagents and consumables, capable of simultaneously processing 16 samples. With enhanced affinity for low-abundance proteins in bodily fluid samples like plasma, it identifies low-abundance proteins associated with diseases, opening new avenues for exploring protein biomarkers in disease-related plasma and other bodily fluids.
Technical Advantages:
- High Depth, Wide Coverage:
- 5 patented nanomagnetic beads enrich low-abundance proteins with excellent affinity.
- One-time identification of over 5000 proteins in human plasma.
- High Throughput, Fast Turnaround:
- Fully automated pre-processing; from enrichment to peptide segments takes only 7 hours.
- One-time pre-processing of 16 sample cases.
- High Quality, High Stability:
- Automated pre-processing workstation eliminates system errors.
- Peptide segment coefficient of variation (CV) is below 20%.
